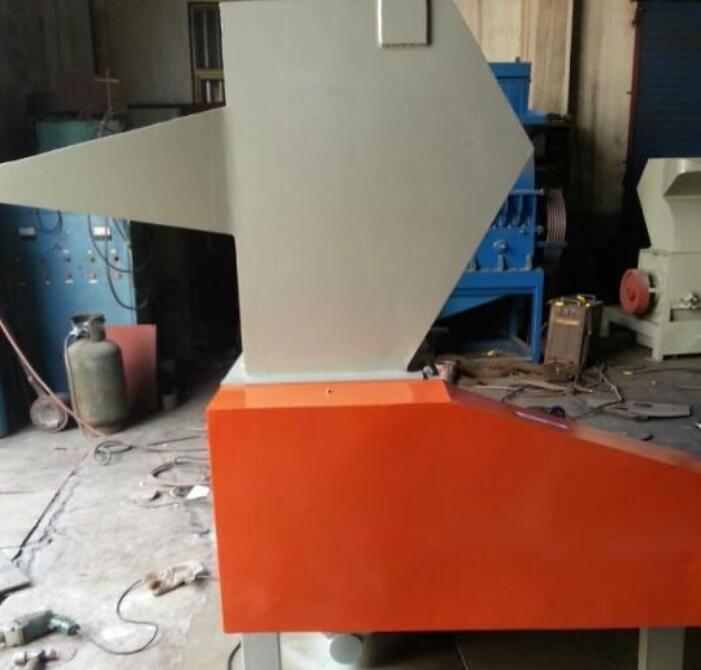

crushing machine for plastic

Professional flat knife holder. It is suitable for the crushing and recycling of thin tubes, thin-walled plastic parts and fibers such as films, plastic bags, bottles and cotton.

Reasonable design and simple structure. Detachable movable knife, detachable and adjustable, easy and quick to change the knife.

Bearings are sealed, the tool seat is heat-shrinked. The aperture of the screen can be customized, and the drawer type stainless steel hopper.

The whole machine is matched with safe stroke protection and automatic protection of current overload.

The corresponding models of conventional flat-knife pulverizers are: 250 type (5.5hp), 300 type (7.5hp), 400 type (10hp), 500 type (15hp), 800 type (30hp).

crushing machine for plastic Technical Data

model	PD250	PD300	PD400	PD500	PD600	PD800
crushing diameter (mm)	250*200	310*200	400*240	504*320	610*320	815*470
crushing ability (kg/h)	10~15	15~30	50~80	100~150	200~250	300~400
stationary knife	1	1	2	2	2	3
rotary knife	3	3	6	6	6	9
power Kw	3.7	5.5	7.5	11	15	22/30/37
power HP	5	7.5	10	15	20	30/40/50
Dimensions	95*65*115	100*72*120	120*85*130	140*100*145	165*110*165	180*150*210
net weight(kg)	280	300	400	500	600	1600
