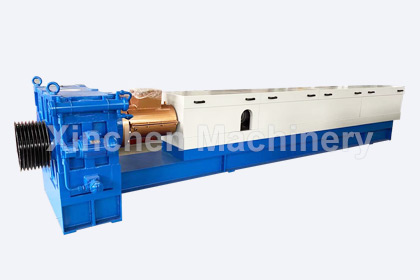

XC-PP Nonwoven Fabrics Extruder
·PE spun bond nonwoven
·PET spun bond nonwoven
·Other Customized Application
- ●Business type: manufacture, foreign trade company.
- ●Origin: Zhoushan City, Zhejiang, China
- ●Warranty: 12 months for fresh material.
- ●International Commercial Terms: FOB, CFR, CIF, EXW
- ●Terms of Payment: L/C, T/T
- ●Average Lead Time: Extruder 7 days. Peak season lead time: 3-6 months, Off season lead time: 1-3 months
Features
-Applicable to PP spun bond nonwoven, PE spun bond nonwoven, PET spun bond nonwoven, etc.
-Configured with trim edge recycling extruder machine for nonwoven fabrics. Collecting nonwoven trims and recycling extruding with the main extruder, saving cost efficiently.
-High capacity screw barrel design developed for nonwoven fabrics, stable plasticization and excellent melt quality.
– Equipped infrared barrel heater, saving 30% energy consumption. Machine covers stainless steel box, save energy.
-Modularity and specialization. Adapt different nonwoven raw materials and processing methods, shorten the new nonwoven product development time, and reduce costs.
Technical parameter
PP spun bond nonwoven fabric extruder machine
| Model | Screw spec(mm) | Screw rpm(r/min) | Motor power (kw) | Capacity （ kg/h ） | Heating section | Heating power （ kw ） | Dimensions |
| XCSN-120/30PP | φ 120/30 | 75 | 75 | 200 | 6 | 45 | 4.4*1.0*0.7 |
| XCSN-130/30PP | φ 130/30 | 75 | 90 | 220 | 6 | 45 | 4.7*1.2*0.7 |
| XCSN-135/30PP | φ 135/30 | 75 | 90 | 260 | 7 | 63 | 4.9*1.2*0.7 |
| XCSN-150/30PP | φ 150/30 | 70 | 110 | 350 | 6 | 90 | 5.7*1.2*0.7 |
| XCSN-160/30PP | φ 160/30 | 70 | 110 | 400 | 6 | 90 | 5.6*1.2*0.8 |
| XCSN-170/30PP | φ 170/30 | 60 | 132 | 450 | 7 | 105 | 6.5*1.2*0.8 |
| XCSN-180/30PP | φ 180/30 | 60 | 160 | 500 | 8 | 110 | 6.7*1.3*0.8 |
*The screw L/D ratio and screw design can be increased according to different product characteristics and output requirements.
Nonwoven fabric trim recycling machine
| Model | Screw spec(mm) | Screw rpm(r/min) | Motor power (kw) | Heating section | Heating power（kw） | Dimensions |
| XCNR-105/15 | φ105/15 | 110 | 18.5 | 4 | 14.7 | 2.8*1.3*0.9 |
| XCNR-120/15 | φ120/15 | 100 | 22 | 4 | 22.5 | 3.0*1.3*0.9 |
Applications
1、medical and health care: baby diapers, women’s sanitary napkins, adult incontinence pads, dust covers, protective clothing, wiping cloths, wet face towels, beauty products, sanitary pads, disposable sanitary cloths, etc..
2、packaging materials and lining wrapping materials: shopping bags, rice bags, tea bags, garment bags, bag liners, packaging base liners, quilt wadding, etc.
3、Agricultural covering materials: crop protection cloth, rice planting cloth, irrigation cloth, thermal curtain, etc.
PP melt blown nonwoven fabric extruder
| Model | Screw spec(mm) | Screw rpm(r/min) | Motor power (kw) | Max extrusion（kg/h） | Heating section | Heating power（kw） | Dimensions |
| XCMN-105/30 | φ105/30 | 75 | 55 | 160 | 6 | 39.6 | 4.1*1.0*0.7 |
| XCMN-120/30 | φ120/30 | 75 | 75 | 200 | 6 | 45 | 4.4*1.0*0.7 |
| XCMN-130/30 | φ130/30 | 75 | 90 | 220 | 6 | 45 | 4.7*1.2*0.7 |
| XCMN-140/30 | φ140/30 | 75 | 90 | 300 | 6 | 45 | 5.0*1.2*0.7 |
